Who is DeFelsko

DeFelsko Corporation, a leading U.S. Manufacturer of coating thickness gauges and inspection instruments, has been delivering Simple, Durable and also Accurate gauges since 1965. Family owned and operated in Northern New York, their state of the art facility houses research, development, manufacturing, quality, sales, training and also service departments. Over the years, DeFelsko has pioneered many technologies including: Firstly is the first combination ferrous/non-ferrous gage to automatically recognize the substrate and take a measurement Secondly is the first hand-held ultrasonic coating thickness gage for non-metal substrates including plastic, wood, and concrete Thirdly is the first fully-interchangeable inspection instrument, featuring compatibility with coating thickness, dew point, surface profile, soluble salt, ultrasonic wall thickness and hardness probes Fourthly is the first ISO-compliant salt contamination measurement method, with no sharps or adhesive Finally is the first hand-held, field-ready instrument for 3D-imaging of blasted surfaces and measurement of peak density and other variables Starting with the mechanical PosiTest FM and GM, DeFelsko has shown a commitment to excellence in manufacturing and also after sales support. DeFelsko actively participates in several key organizations (SSPC, NACE, ASTM, ISO) to improve and promote the science of coating inspection. DeFelsko is recognized as a premier American manufacturer of quality inspection.

DeFelsko products category such as:

PosiTector

Coating Thickness Gauge for Metal PosiTector 6000, Coating Thickness Gauge For Non-Metal PosiTector 200, Ultrasonic Wall Thickness Gauge PosiTector UTG, Dew Point Meter Gauge PosiTector DPM, Infrared Thermometer gauge PosiTector IRT, Surface Profile Gauge PosiTector SPG, Replica Tape Reader PosiTector RTR/3D, Shore Hardness Durometer PosiTector SHD, Barchol Hardness Durometer PosiTector BHI, Soluble Salt Tester PosiTector SST, Gloss Meter PosiTector GLS.

PosiTest

DFT Gauge PosiTest DFT, Pull Off Adhesion Tester PosiTest AT, High Voltage Holiday Detector PosiTest HHD, Low voltage Pin Hole Detector PosiTest LPD, Powder Coating Thickness gauge PosiTest PC, Inpstion Kit PosiTest Smartlink, Oven Temperature Logger PosiTest OTL, Concrete Moisture Meter PosiTest CMM, ect. PT. Cuanli Perkasa Jaya Is one of DeFelsko worldwide Distributors located in Indonesia.

PosiTector

Positector bodies accept all PosiTector probes easily converting from a coating thickness gage to a surface profile gage, dew point meter, soluble salt tester, hardness or ultrasonic thickness gage. PositectorGage Bodies can be used with all PosiTector probes. Choose from Standard or Advanced models with choice of protective carrying case—small or large. The award winning PosiTector gage bodies accept ALL coating thickness (6000/200), surface profile (SPG/RTR), environmental (DPM/IRT), salt contamination (SST), hardness (BHI/SHD), gloss (GLS), and ultrasonic wall thickness (UTG) probes. Standard Models Storage of 1,000 readings per probe—stored readings can viewed or downloaded. Advanced Models Storage of 250,000 readings from multiple probes in up to 1,000 batches and sub-batches. Touchscreen keyboard quickly renaming batches, adding notes, and more. WiFi technology wirelessly synchronizes with PosiSoft.net and downloads software updates Bluetooth 4.0. Technology for data transfer to a mobile device running the PosiTector App or optional portable printer. BLE API available for integration into third-party software. Store thickness, profile, environmental, wall thickness, hardness and salt contamination measurements in individual batches. Includes protective rubber holster, wrist strap, 3 AAA batteries. Choice of case, protective lens shield, USB cable and a year warranty.

Determine Probe

To determine probe compatibility based upon the gage body serial number, visit the Compatibility Page. DeFelsko continuously improves and expands its PosiTector platform, and new probes. Sometimes require technologies that are not available on older gage bodies. The below chart is a quick reference to determine compatibility, based on the gage body serial number. This serial number is printed inside the battery compartment, and is also displayed on the Gage Info screen (Gage Menu > Settings > Gage Info). Note: If an ‘unsupported’ message is displayed, and the chart indicates the probe and gage body are compatible, a gage update may be required. Convenient hard shell case for carrying a PosiTector gage body and multiple probes. Including any of the PosiTector 6000 Coating Thickness probes, DPM Dew Point Meter probes, SPG Surface Profile probes, or UTG Ultrasonic Wall Thickness probes. Case has compartments for Certificates of Calibration, instruction manuals and other accessories.

Positector-6000 (magnetic and eddy current coating thickness)

Coating thickness gauge for metal substrates is rugged, fully electronic coating thickness gauges use magnetic and eddy current principles. For measure coating thickness on metal, both ferrous and non-ferrous metals, accurately, easy, and quickly.

PosiTector_200 (ultrasonic coating thickness)

Coating Thickness Gauge for concrete, wood, plastic or use on Non Metal substrates. It is a Non-destructively measures a wide variety of applications, and using proven ultrasound technology. For measure coating thickness layers over the wood, concrete, plastic and other more.

PositectorS-PG (surface profile)

Is a type of profile gauge that measures the surface roughness of an object, usually to facilitate substrate preparation. And also the application of a protective coating. This tool records the roughness or cross-sectional shape that may be already observe on a surface. Surface Profile Gauge for Blasted Steel, Textured Coatings and Concrete Profile.

PosiTector_RTR or PosiTector RTR 3D (replica tape reader)

Is portable instrument with digital spring micrometers measure and also record surface profile parameters using replica tape. The replica tape consists of a layer of crush-able plastic micro foam coated onto a polyester film of highly uniform thickness. When the tape is compress onto the surface of a material (either rough or smooth), a mirror image replica of the exact surface details will create on the tape, which is then examine by coating inspectors or other parties.

Positector-DPM (environmental/dew point meter)

is uses for measures and also records climatic conditions. The measure including : Relative humidity, air temperature, surface temperature, dew point temperature, wind speed difference between surface and also dew point temperatures.

PosiTector _IRT (infrared thermometer)

is a Non-contact surface temperature measurement. Unlike the PosiTector DPM IR, the Positector IRT measures surface temperature only. The PosiTector DPM family measures a number of climatic parameters including relative humidity, air temperature and surface temperature allowing it to calculate dew point temperature and the all-important difference between surface temperature and dew point temperature (Ts-Td) — a vital parameter for industrial painters. The PosiTector IRT has a larger distance to spot ratio and a button activated laser pointer for precise and accurate surface temperature measurement.

Positector-UTG (ultrasonic wall thickness)

Measures the wall thickness of materials such as steel, plastic and also other more using ultrasonic technology. Ideal for measuring the effects of corrosion or erosion on tanks, pipes and also any structure where access is limited to one side. Multiple echo (UTG M) Thru-Paint models measure the metal thickness of a painted structure without having to remove the coating.

PosiTector_SST (soluble salt testing)

Use to measures the concentration of soluble salts (salt contamination) on metal surfaces in accordance with ISO 8502-6, 8502-9. Using the measured conductivity value and also the sample test volume (set within the gage menu), then the surface density of the salts (mg/m2 or µg/cm2) is automatically calculated in accordance with ISO 8502-9. Saving the gauge operator time and also eliminating the chance of a calculation error.

PosiTector-SHD (Shore hardness durometer)

Handheld electronic instrument measures the indentation hardness of non-metallic materials. Two durometer models are available for different hardness ranges—Shore A and Shore D.

PosiTector_BHI (Barcol hardness impressor)

Is use for testing the hardness of materials such as aluminum, aluminum alloys, copper, brass and other materials including plastics and also fiberglass. The instrument is designed for use on fabricated parts and assemblies as well as on raw stock. Simple and also portable instrument for testing the hardness of materials acc. to ASTM D2583. Originally call the Barber-Colman Impressor, the Barcol impressor was developed by Walter Colman as a hand-held, portable means of assessing the hardness of a materials.

PosiTector-GLS (Gloss Meter)

is an instrument which is use to measure specular reflection gloss of a surface. It is determin by projecting a beam of light at a fix intensity and also angle onto a surface. And then measuring the amount of reflected light at an equal but opposite angle.

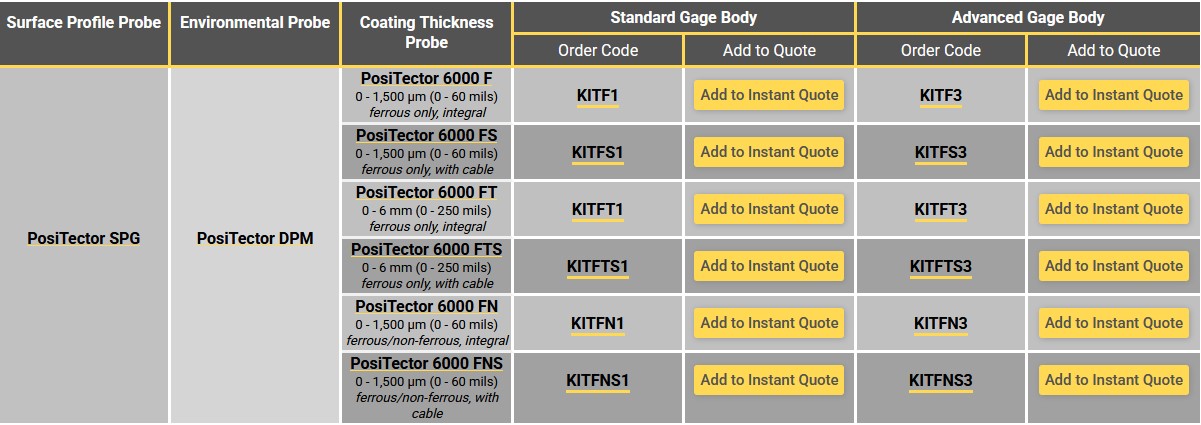

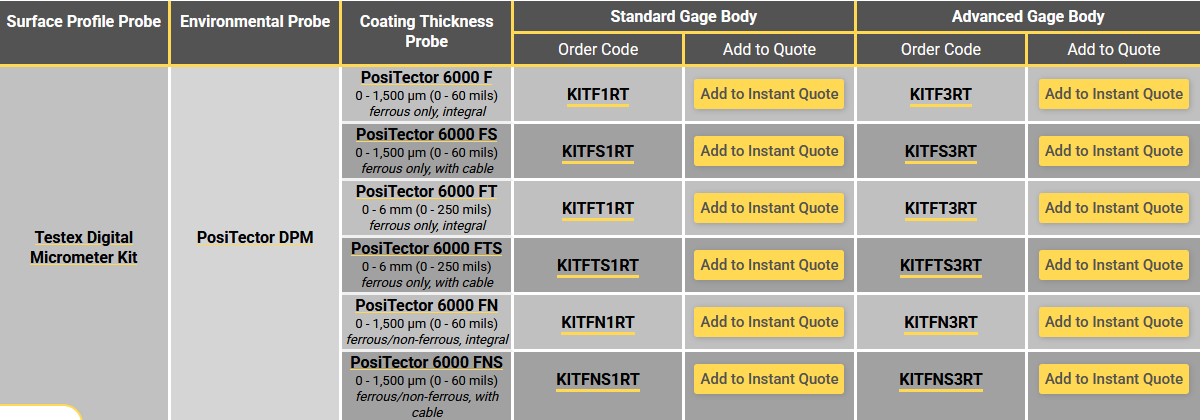

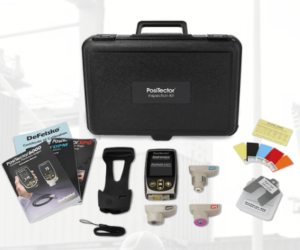

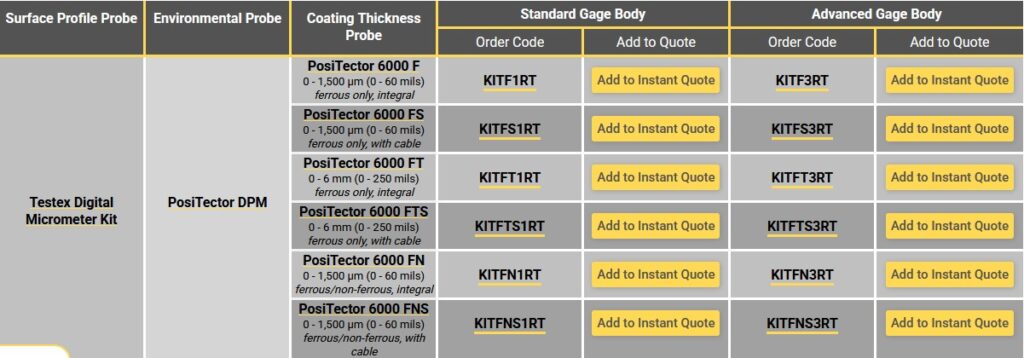

Inspection Kit

Coating Inspection Kit is designed for the painting contractor’s foreman or lead man. The instruments contained in this kit will provide that person, when properly trained, with the minimum inspection instruments normally required for verifying ambient conditions, surface temperatures, degree of cleanliness, anchor profile, wet film thickness, and dry film thickness, etc. As the coating industry grows, technology changes, and the cost of a coating program becomes a major investment. The documentation requirements for each step of that program has also become more stringent. For more products information please contact us.
