Description
Why Concrete Moisture Measurement is Important
Concrete Moisture Meter is non-destructively measures the moisture level.
Before applying a protective coating or other flooring materials to a concrete slab, it is critical to ensure that the moisture level inside the concrete has decreased to acceptable levels—typically ≤75% Relative Humidity (RH), 3 lbs/1000 sq. ft./24 hours MVER, or ≤5% Moisture Content (MC).
If not, moisture can accumulate below the coating or flooring and will causing discoloration, cupping, buckling, blistering, adhesive failure, and/or mold growth. There are various methods used for concrete moisture measurement. The two most-common methods utilize as the first is non-destructive electronic impedance meters (ASTM F2659) or teh second is In Situ relative humidity probes (ASTM F2170).
Proper inspection of the moisture content in concrete before installing a flooring system is a necessary part in quality control and assurance—lowering the chances of a flooring system failure.
1. PosiTest Concrete Moisture Meter.
Concrete Moisture Meter non-destructively measures the moisture content of concrete in accordance with ASTM F2659.
The PosiTest CMM Concrete Moisture Meter is the fast, non-destructive impedance meter ideal for inspectors looking to quickly evaluate the moisture condition in concrete slabs.
Its easy to read digital display takes the guess work out of analog scales. Available storage of 200 readings, and stored readings also can be viewed or downloaded. Come with innovative Hold Max and Save Mode, then waits for the reading to stabilize, and finally automatically saves it into memory. The PosiTest CMM built-in threaded mounting point for the optional Telescopic Extender to ergonomically measure without bending or kneeling. The Weatherproof, dust proof, and also water-resistant accordance to IP65-rated enclosure.
PosiTest CMM Features

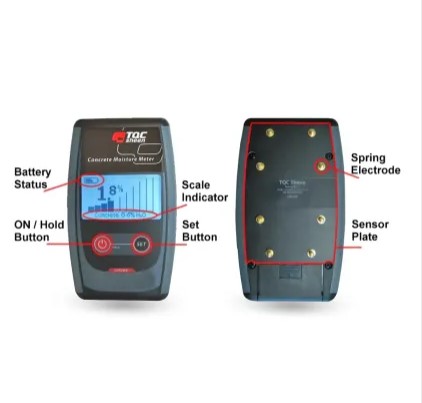

2. TQC Concrete Moisture Meter.
TQC Concrete moisture meter is a non-destructive moisture meter for concrete. With a simple pressing the instrument against the concrete surface the moisture content of concrete can be easily to determine.
The electrical impedance is measured through generating a low frequency electric field between 8 electrodes at the bottom of the instrument. Depending on the moisture content the measurements are made to a depth of several centimeters.
This system is not suitable to measure through electrically conductive materials like metal or rubber linings and also wet surfaces.
TQC Concrete Moisture meters are ideal to quickly test large concrete floors, to be paint construction, or (wooden) flooring are being installation.
Four moisture meter scales
Four scales allow flexible use of the instrument as an accurate measuring device or just as a detector to find moisture traces or leakage.
Firstly – Concrete 0-6% H2O
Concrete scale only used for concrete surfaces. It shows the relation between weight of pure water contained in the tested material with its dry weight. The scale range varies between 0 and 6% as 6% is about maximal physically possible content of water in the concrete.
The obtained results should not influence by moisture emission or any other humidity measurement methods.
Secondly – Carbide Method 0-4% H2O
Carbide scale shows concrete humidity according to the carbide method.
Thirdly – Relative Scale 0-100%
Relative scale formally used in humidity level comparison of various materials. The Obtained results should not be interpret as percentage content of water in tested surfaces. There is no linear correlation between the outcomes and relative humidity. The scale only use as comparison technique. Scale may be uses on the surfaces where direct contact with pure concrete is impossible because of some layer/covering.
Fourthly – 15. Scale 0.3-15.3m
15 Scale works in a similar way as the Relative scale and can be uses alongside meters with the same scale, which ranges between 0.3 and 15.3.
With the convenient features such as a “max-hold” use for hard reaches places and “auto-switch off” are integrated.
TQC CMM Specifications
- Dimensions: 147x89x33mm
- Power supply: 2xAA battery
- Average working time on one battery set : 20 hours
- Display: monochrome 128×64 pixels, size 61x33mm with backlight
- Operating temperature range: from 5°C until 40°C
- Accuracy: ±0.5%
Scope of supply
- Concrete moisture meter
- Soft pouch
- Manual
3. POSITECTOR CMM IS ( CONCRETE MOISTURE METER )
PosiTector Concrete Moisture Meter In-Situ probes and free mobile app guide users through the ASTM F2170 documentation criteria. Easy view and record readings directly with your Apple or Android smart device or PosiTector DPM Advanced gage also available.
- Firstly, can easily collect and report for both relative humidity and temperature in concrete floor slabs in conformance with ASTM F2170
- No open hole or remove cap require, Probes remain powered on and broadcasting via Bluetooth while in situ for up to three weeks.
- Combined sleeve and probe design simplifies the installation process, and also no consumable requirement.
- Reusable Smart Probes
- Fast response precision sensors provide accurate and also repeatable readings
- Certificate of Calibration showing traceability to NIST also include (Long Form).

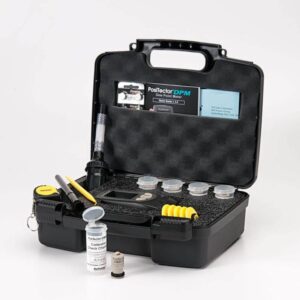

PosiTector Concrete Moisture Meter In-Situ Kit Options
Selectable from 3 expandable Kits and add additional probes as required with our selection of Expansion Packs as follow:
Firstly Basic Kit CMM IS KIT B
Saturated Salt Solutions (3)
Calibration Check Chambers (3)
Three Caps
Extraction Tool
Tape Measure and also ten A-76/LR-44 coin cell batteries
Secondly Complete Kit CMM IS KIT C
Includes
Saturated Salt Solutions (5)
Calibration Check Chambers (5)
Caps (5)
Extraction Tool
Tape Measure
Vacuum Tool Attachments
Ten A-76/LR-44 coin cell batteries and also Hard shell carrying case.
Thirdly Pro Kit CMM IS KIT P3-E
Fives pcs CMM IS probes
Five pcs Saturated Salt Solutions
Fives pcs Calibration Check Chambers
Five pcs Caps
Extraction Tool
Tape Measure
Vacuum Tool Attachments
Ten A-76/LR-44 coin cell batteries and also Hard shell carrying case

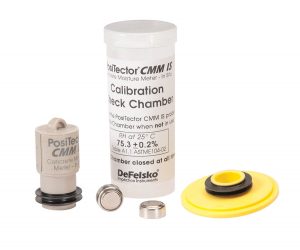

Expansion Packs (1, 4 and also 16 packs available)
Add additional reusable PosiTector CMM IS smart probes as required. Each pack consists of a probe, calibration check chamber, saturated salt solution, (NaCl), Cap, and also A-76/LR-44 coin cell batteries.
For more products detail please contact us.
