Positector PC Powder Checker


Range† : 20 – 100 μm (0.8 – 4.0 mils)
Resolution : 1 μm (0.1 mil)
Accuracy : ±5 μm (± 0.2 mil)
Measurement Time : 1 – 3 seconds
Measurement Distance to Powder : 19 mm (0.75 inch)
Measurement Area : 2 mm (0.8 inch)
Size : 241 x 64 x 51 mm (9.5″ x 2.5″ x 2.0″)
Weight : 180 g (6.4 oz.) without batteries
† Based on TGIC-Free polyester powder

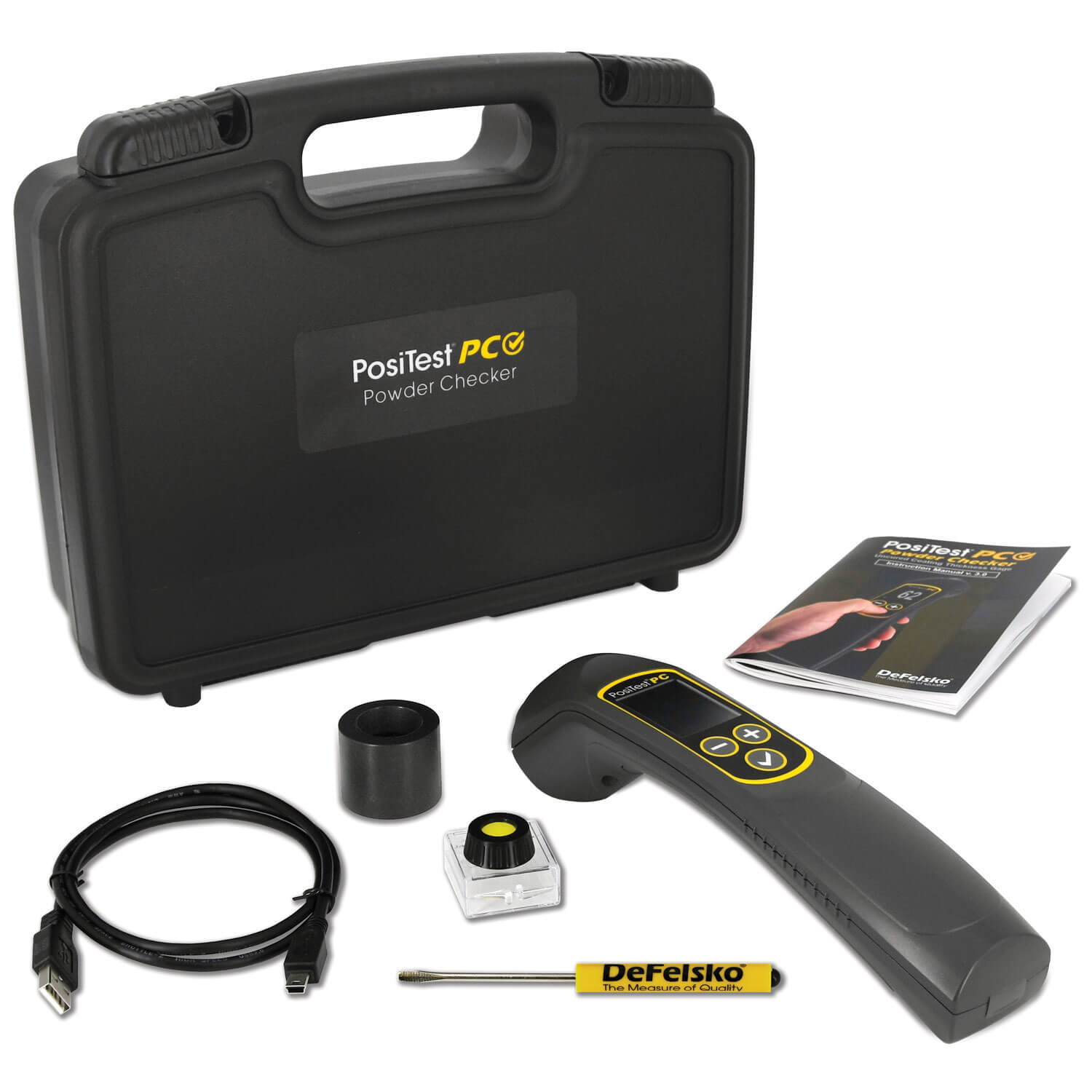

Gage comes complete with probe Zero Fixture, 4 AAA batteries, flat-head screwdriver, instructions, replacement probe screen, protective lens shield, USB cable, hard shell case, One (1) year warranty

* Versus the previous generation PosiTector PC Powder Checker


Powder Checker PosiTest PC

What is PosiTest PC Powder Checker

PosiTector PC Powder Checker is a Non-contact measure the Uncured Powder Thickness Gage.

Affordably measures uncured powder coatings using non-contact ultrasonic technology to predict a cured thickness

  • Dedicated stand-alone unit is ready to measure right out of the box
  • Up to 4x faster measurement speed* — ideal for moving lines and swinging parts
  • No calibration adjustment required for most powders
  • Storage of 999 readings with onscreen averaging. Stored readings can be downloaded to PosiSoft Desktop Software
  • Scan Mode continuously takes measurements — ideal for analyzing large areas
Conforms to ASTM D7378

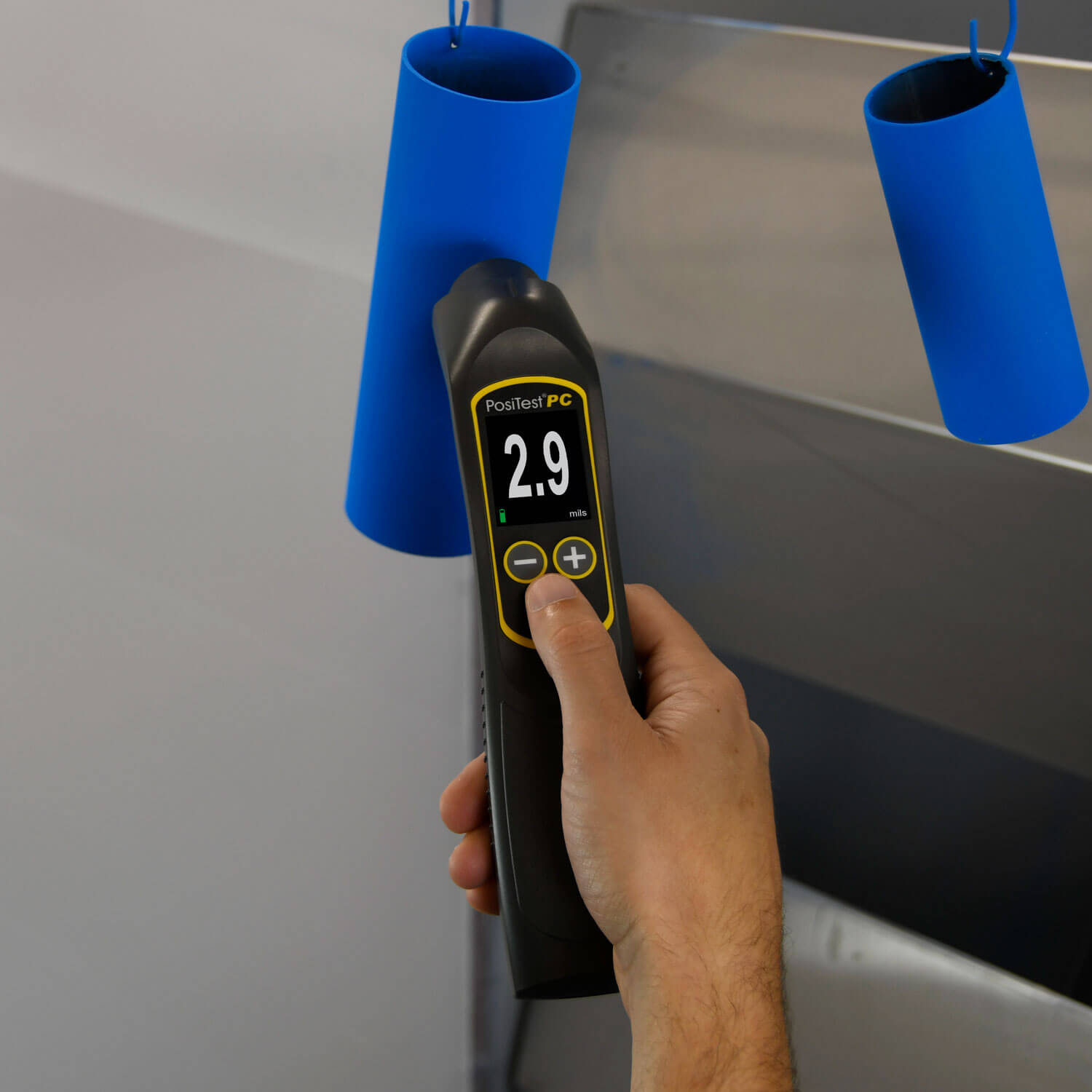

PosiTector PC Powder Checker Measure

Powder coating uncured measure

PosiTector PC Check Kit

Powder coating PC Check kit

PosiTector PC Powder Checker for Uncured Powder Check

Non-contact coating thickness gage measures uncured powder and also predicts cured thickness too.

  • All readings are constantly updated and displayed simultaneously
  • Advanced technology allowing measurements on moving parts
  • Solvent, acid, oil, water, and dust resistant – weatherproof too
  • PosiTector interchangeable platform available attach any PosiTector probe to a single gage body
  • USB, WiFi, and Bluetooth connectivity to PosiSoft PC, Mac, and Smartphone software


  • Hand-held, battery operated
  • No calibration adjustment required for most powders
  • Thickness results appear on both gage body and probe


  • Solvent, acid, oil, water and dust resistant—ideal for powder coating environments
  • Shock-absorbing, protective rubber holster with belt clip
  • Replaceable screen protects the probe
  • Two year warranty on both gage body and probe


  • Conforms to ASTM D7378
  • Allows measurement on small tubes, odd shapes and moving parts
  • Easy calibration adjustment options to improve accuracy on unusual powders or substrates


  • Wireless probe communicates with Advanced gage body up to 10m away (30 feet). No cable to risk disturbing applied powder
  • Selectable display languages
  • Hi Contrast backlit display for bright or dark environments
  • Uses alkaline or rechargeable batteries (built-in charger)
  • PosiTector PC accepts all PosiTector probes easily converting from measuring uncured powder to cured dry film thickness, surface profile, and mor


  • Hi Contrast reversible color LCD
  • Real time graphing, picture prompting and more
  • Batch annotation—add notes and change batch names with onscreen QWERTY keyboard
  • WiFi technology wirelessly synchronizes with, downloads software updates to keep gage current and connects with mobile devices for expanded functionality
  • Data transfer via USB to a PC or via Bluetooth Wireless Technology to a PC or printer
  • Continually displays/updates basic statistics including min/max and average
  • Storage of 100,000 readings in up to 1,000 batches
  • USB port for fast, simple connection to a PC and to supply continuous powe USB cable included
  • PosiSoft solutions for viewing, analyzing and reporting data include
  • PosiSoft USB Drive,, PosiSoft 3.0 Desktop software, PosiSoft Mobile
  • Gage generates formatted reports with measurement summaries and chart

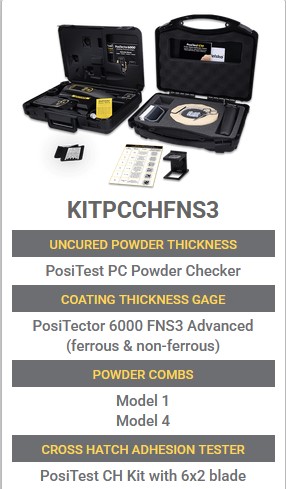

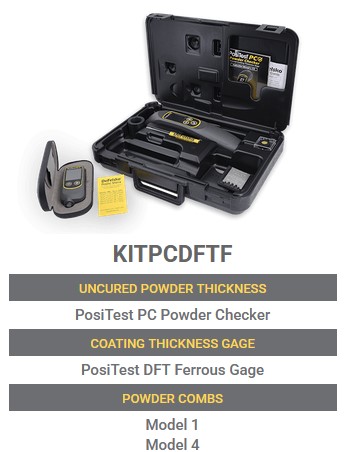

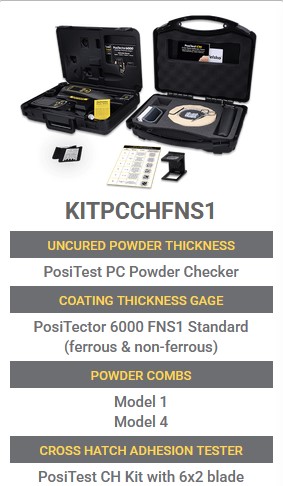

PosiTector PC Powder Checker Inspection Kits

Complete solutions for measuring powder coatings before and after cure

Each Powder Inspection Kit contains:

  • PosiTector Advanced Gage Body
  • PC non-contact uncured powder thickness probe
  • PosiTector 6000 coating thickness probe — select from a variety of measurement ranges and probe styles
  • 2 DeFelsko Powder Combs (models 1 & 4) with measuring ranges of 3 to 12 mils and 75 to 300 µm

Custom Inspection Kits

Select from 4 pre-configured kits or build your own

  • Build your own Powder Inspection Kit from a selection of probes to suit your needs
  • PosiTector PC accepts all PosiTector probes easily converting from measuring uncured powder to cured dry film thickness, surface profile, and more.
DeFelsko Powder Comb (included)

simple. easy-to-use gage measures the thickness (height or depth) of applied dry coating powders in the pre-cured, pre-gelled state.
