Description

TQC Viscosity Cup

TQC Viscosity cup is an instrument use to determine a fluid’s thickness and also flow resistance. This is done by introducing a sample of the fluid into a container with a hole in its bottom and recording the time it takes for the container to empty when draining the fluid through the opening. The faster the fluid is drain, the less viscous the fluid is and so vice versa.

The TQC Viscosity Cup work, the fluid’s property for resistance to flow or deformation. So if higher the viscosity of a product then the more it will resist to flow.

The process of flow through an orifice can often be uses as a relative measurement and also classification of viscosity. This measure kinematic viscosity is generally expresses in seconds of flow time. It also can be converte into Centi-stokes using a viscosity disc calculator. Dip cups can be use to provide a quick viscosity measurement on the shop floor or on site.

Paints are engineered to be non-Newtonian these days and chemically modified, using or modifying it is a hot item additives react to the force that is exerted to the paint, thus making paint almost solid.

The dimensions of this flow cup are according to DIN 53211, fitted with a handle, and also referred to as a FRIKMAR cup.

STANDARD :

• The BS Viscosity Cups is a range of anodised aluminum viscosity cups with integral nozzle. Suited for measuring paints, lacquers and also the other fluids. (Note: the cup doesn’t have a stainless steel insert). According to (old type) BS3900: Part A6, 1971. This specification is replace by BS EN ISO 2431/8S3900 part A6:1996 – see BS EN ISO 2431 series of cups.
• DIN 53211. Cup consist of a wide range viscosity cups to measure the viscosity of paint, lacquers and other fluids. It is very precise, with fixed stainless steel nozzle.
• ISO 2431. TQC Viscosity Cup is a range of titanium anodizes aluminum or stainless steel (SS303) viscosity cups come with fixed stainless steel nozzle (inner cavity).
• TQC Viscosity Cup ASTM D1200. Ford is a range of titanium anodize aluminum or stainless steel viscosity cups with fixed stainless steel nozzle (inner cavity).

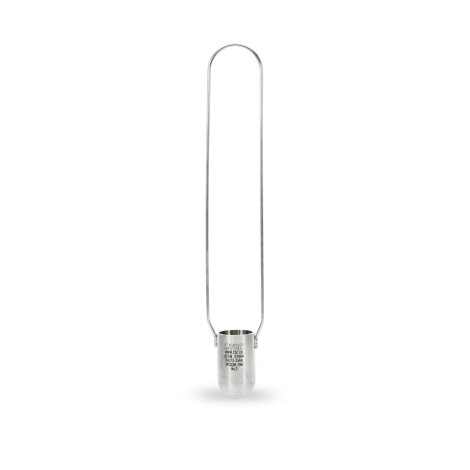

•  ASTM D1084 D4212. Immersion-Zahn is a range of stainless steel (SS303) viscosity cups with fixed stainless steel inner cavity nozzle and also handle.

Description

Brought to you by TQC Sheen, our specialist testing brand, we can offer a range of dip/immersion type viscosity cup, designed to be according or similar to DIN 53211.

Our range of viscosity cups are available in titanium anodize aluminum cups or stainless steel, and also design in accordance to DIN 53211 or similar to the DIN 53211 standard.

The dip/immersion type viscosity cups are design to measure the viscosity of paint, lacquers and also other fluids. Each cup is design with a fixed stainless-steel nozzle and also handle.

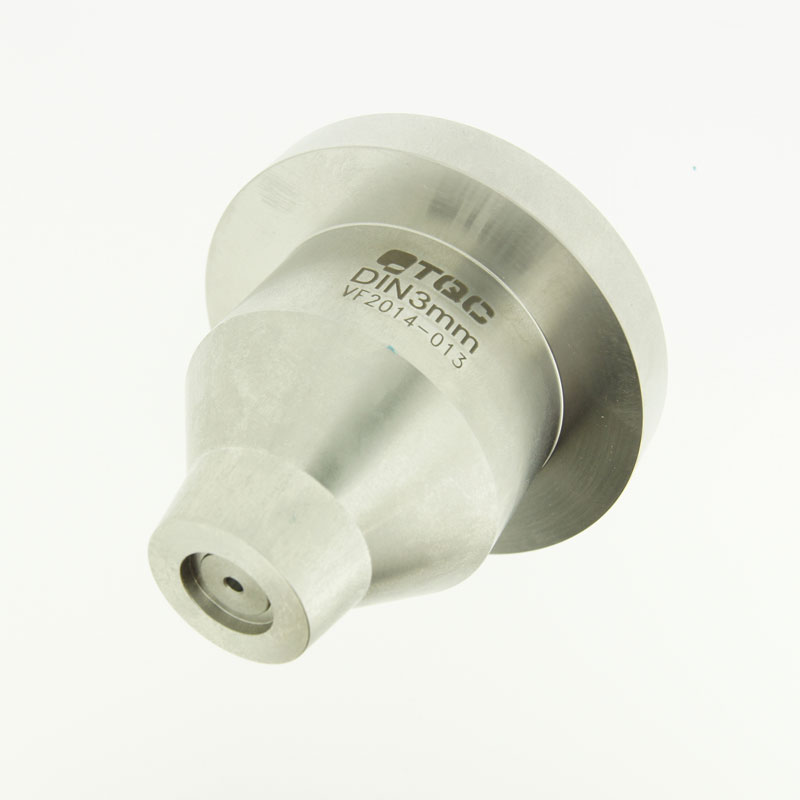

Viscosity Cups according to DIN 53211

Optional: possible to certify by calibration with certified oils

Viscosity Cups similar to DIN 53211

Get a handle on your viscosity testing 

Each of our dip/immersion viscosity cups comes with a long loop handle. This helpful immersion cup edition enables you to dip the cup by hand into a liquid container. So, it’s easy to quickly check and adjust the viscosity of many different types of liquid.

Portable viscosity cup protection   

Our viscosity cups come with a hard plastic storage case which is filled with soft protective material. So, they’re protected from any bumps in storage or drops in transit.

Multi-sector viscosity testing options

Our range of dip/immersion viscosity cups are relied upon by customers across a wide range of sectors and also for a number of different applications. Including the inks and coatings sector, the beverage sector and within the food industry. 

Pouring out our viscosity cup expertise

Industrial Physics has been making viscosity cups like these dip/immersion type cups or laboratory type cups for many years. In fact, we make lots of different viscosity cups of all different shapes, sizes and also for all manner of viscosity test types. Why not check out our range of laboratory type DIN 53211 viscosity cups, or our range of ISO 2431 Viscosity cups.

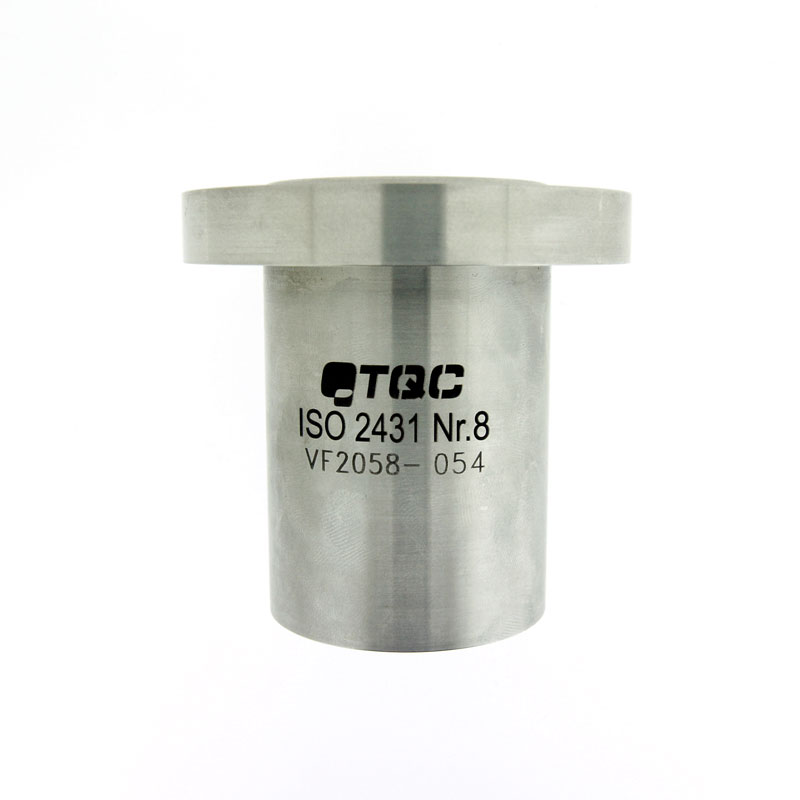

Dip/Immersion Viscosity Cups according to ISO 2431

For information purposes only: all approximate cSt values at 25 °C

Get a handle on your viscosity cup testing

Each of our dip/immersion viscosity cups comes with a long loop handle. This helpful immersion cup edition enables you to dip the cup by hand into a liquid container. So, it’s easy to quickly check and adjust the viscosity of many different types of liquid.

Portable viscosity cup protection

Our viscosity cups come with a hard plastic storage case that is filled with soft protective material. So, they’re protected from any bumps in storage or drops in transit.

Multi-sector viscosity testing options

Our range of dip/immersion viscosity cups is relied upon by customers across a wide range of sectors and for a number of different applications, including the inks and coatings sector, the beverage sector and within the food industry. 

Pouring out our viscosity cup expertise 

Industrial Physics has been making viscosity cups like these dip/immersion type cups or laboratory type cups for many years. In fact, we make lots of different viscosity cups of all different shapes, sizes and for all manner of viscosity test types. Why not check out our range of laboratory type AFNOR viscosity cups, or our range of DIN 53211 Immersion Viscosity cups.

We also make lots of viscosity testing accessories, such as tripod stands, temperature control jackets and a handy viscosity conversion disc.

Dip/Immersion Viscosity Cups according to ISO 2431

For information purposes only: all approximate cSt values at 25 °C

Get a handle on your viscosity cup testing

Each of our dip/immersion viscosity cups comes with a long loop handle. This helpful immersion cup edition enables you to dip the cup by hand into a liquid container. So, it’s easy to quickly check and adjust the viscosity of many different types of liquid.

Portable viscosity cup protection

Our viscosity cups come with a hard plastic storage case that is filled with soft protective material. So, they’re protected from any bumps in storage or drops in transit.

Multi-sector viscosity testing options

Our range of dip/immersion viscosity cups is relied upon by customers across a wide range of sectors and for a number of different applications, including the inks and coatings sector, the beverage sector and within the food industry. 

Pouring out our viscosity cup expertise 

Industrial Physics has been making viscosity cups like these dip/immersion type cups or laboratory type cups for many years. In fact, we make lots of different viscosity cups of all different shapes, sizes and for all manner of viscosity test types. Why not check out our range of laboratory type AFNOR viscosity cups, or our range of DIN 53211 Immersion Viscosity cups.

We also make lots of viscosity testing accessories, such as tripod stands, temperature control jackets and a handy viscosity conversion disc.

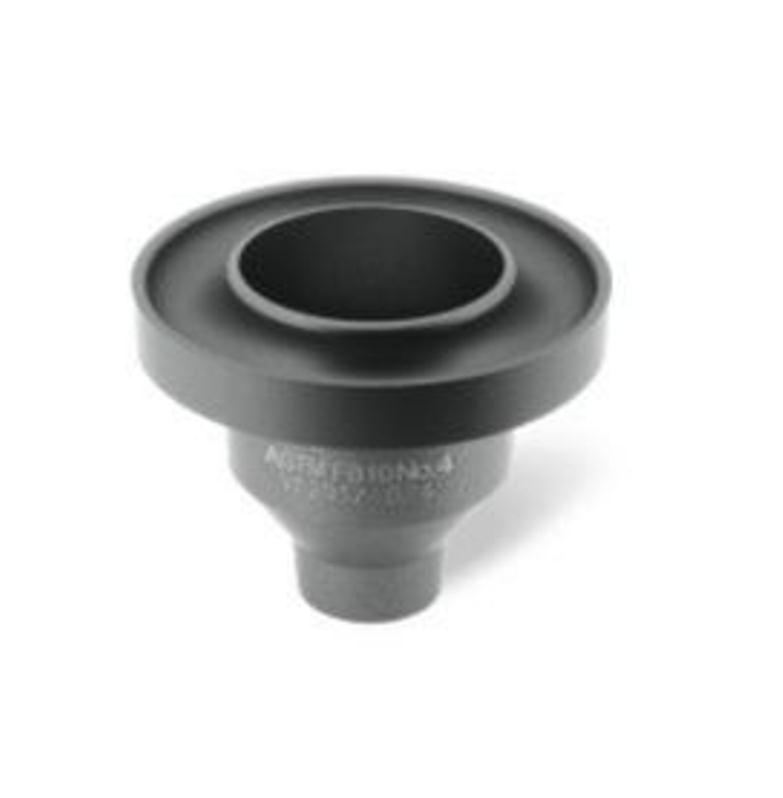

Reliable FORD viscosity cups

Brought to you by TQC Sheen, our specialist testing brand, we offer a range of FORD laboratory viscosity cups according to ASTM D1200, perfect for measuring the viscosity of a variety of liquids. 

These TQC Sheen Viscosity Cups are laboratory style cups, designed to meet ASTM D1200 testing standards.  Our reliable cups are used for measuring the viscosity of paint, lacquers and other fluids. 

Each laboratory viscosity cup comes with a hard plastic storage case with protective soft material on the inside, so you can keep your FORD viscosity cups safe between use or when moving location.  

FORD Viscosity Cup according to ASTM D1200

Check out our quick guide to FORD viscosity cup types according to ASTM D1200 testing standards.

For information purposes only: all approximate cSt values at 25 °C 

Viscosity cups marked for authenticity

Each of our ASTM D1200 viscosity cups is engraved with a unique serial number. So, you can rest assured that you’re in possession of an authentic FORD cup that you can rely upon for your viscosity paint testing.  

Multi-sector viscosity testing options

Our range of laboratory-type viscosity cups is relied upon by customers across a wide range of sectors and for a number of different applications, including the inks and coatings sector, the beverage sector and within the food industry. Whether you need a pulp viscometer or any number of viscometer paint measuring solutions, we’re here to help.

Scoop up our viscosity testing expertise

We’ve been making viscosity cups like the FORD viscosity cup for many years. While our viscosity cups are designed to prevent your paint from spilling over, we’re overflowing with expert knowledge! And we like to share this insight with our customers.   

Across the knowledgebase section of our website, you’ll find blogs that explore all manner of paint testing subjects, including viscosity inspection best practices. Why not take a look at this article that demonstrates how to perform a viscosity test? Then maybe read this one that investigates the different types of viscometers on the market.  

Please contact us for more product information and other inquire.
