PosiTector 6000 Coating Thickness Gauge for Metal Substrates
Positector 6000 Coating thickness gauge for metal substrates is rugged, fully electronic coating thickness gauges use magnetic and eddy current principles to measure coating thickness on metal, both ferrous and non-ferrous metals, accurately, easy, and quickly
- Ready to measure without calibration adjustment required for most applications
- Larger 2.8″ impact resistant color touchscreen with redesigned keypad for quick menu navigation
- NEW Weatherproof, dustproof, and also water-resistant—IP65-rated enclosure
- Wear resistant ruby probe tip instead for long-lasting calibration

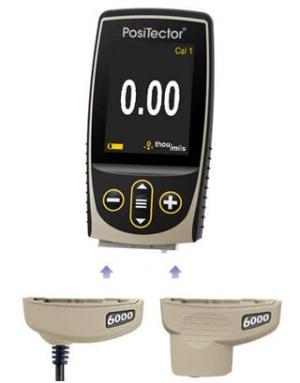

- PosiTector interchangeable platform – attach any PosiTector probe to a single gage body, and also available probe reading to 63.5mm
- USB, WiFi, and Bluetooth connectivity to PosiSoft PC, Mac, and also Smartphone software
- Certificate of Calibration showing traceability to NIST or PTB included for each of probes (Long Form)
Available selection PosiTector 6000 Coating Thickness Gauge – Probes
Select from a variety of measurement ranges and also probe styles
Standard Mode…
- NEW Storage of 1,000 readings per probe also stored readings can be viewed or downloaded
Advanced Models…
- Storage of 250,000 readings in up to 1,000 batches and also sub-batches.
- Available Live graphing of measurement data.
- NEW Prompted Batch Mode—create pre-defined batches with on-screen text and image prompts for each reading.
- 3 Scan Modes — increase measurement speed to 180+ readings per minute.
- Normallly will take continuous readings without lifting the probe.
- Statistics – take continuous readings and record average, standard deviation, min/max thickness and number of readings while scanning.
- Limited Count Average – take continuous readings up to a user-specified count. The gage displays and records the average of the readings.
- Touchscreen keyboard for quickly renaming batches, adding notes, and also more.
- Multiple stored calibration adjustments for measuring on a variety of substrate conditions.
- NEW SSPC-PA 2, ISO 19840, and IMO PSPC 90/10 modes help users comply with standards by prompting for min/max specifications, displaying the necessary readings, and also automatically calculating statistics with a pass/fail result.
- WiFi technology wirelessly synchronizes with PosiSoft.net and also downloads software updates.
- Bluetooth 4.0 Technology for data transfer to a mobile device running the PosiTector App or optional portable printer. BLE API available for integration into third-party software.
- Integrate with third-party software, drones, ROVs, PLCs, and robotic devices using several industry-standard communication protocols.
Simple
- Fast measurement speed—60+ readings per minute. Enhanced FAST mode reached 90+ readings per minute for quick inspection.
- Ready to measure without adjustment required for most applications.
- Larger 2.8″ impact resistant color touchscreen with redesigned keypad for quick menu navigation.
- On-gage help explains menu items at the touch of a button.
- Flashing display—ideal in a noisy environment.
- RESET feature instantly restores factory settings.
Durable
- NEW Weatherproof, dust-proof, and also water-resistant—IP65-rated enclosure.
- NEW Ergonomic design with durable rubberized grip.
- Wear-resistant probe tip.
- Shock-absorbing, protective rubber holster for added impact resistance.
- One Year warranty on gage body AND probe.
Accurate
- Certificate of Calibration showing traceability to NIST or PTB included.
- Built-in temperature compensation ensures measurement accuracy.
- Hi-RES mode increases displayed resolution for precision applications.
- Conforms to national and international standards including ISO and ASTM.
Versatile
- PosiTector body accepts all PosiTector 6000, 200, DPM, IRT, RTR, SPG, SST, SHD, BHI, and also UTG probes easily converting from a coating thickness gage to a dew point meter, surface profile gage, soluble salt tester, ultrasonic wall thickness gage, or hardness tester.
- Multiple Calibration adjustment options including 1 point, 2 point, and also ISO 19840 correction factors.
- Selectable display languages.
- NEW Auto rotating display with Flip Lock.
- Extended cables available (up to 75 m/250 ft) for underwater or remote measuring.
- Mils/Microns/mm switchable.
Powerful
- Statistics mode continually displays/updates average, standard deviation, min/max and number of readings while measuring.
- Screen Capture—save 100 screen images for record keeping and review.
- Hi-Lo alarm audibly and visibly alerts when measurements exceed user-specified limits.
- Instant-on feature quickly powers up the gage if recently powered down.
- NEW Up to 30% longer battery life.
- USB port for fast, simple connection to a PC and to supply continuous power. USB cable included.
- Every stored measurement is date and time stamped.
- Software Updates via web keep your gage current.
- Software Solutions for viewing, analyzing & reporting data.
PosiTector 6000 Selectable from a variety of measurement ranges and probe styles. ( Video )
- DeFelsko warranty a (1 ) year probe and body product it manufactures against defects in workmanship or materials under normal use.
- Heavy-duty, gold-plated locking connector for industrial environments.
- Certificate of Calibration (Long Form) traceable to NIST or PTB included with every probe.

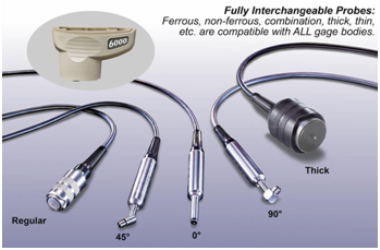

- Each probe retains its own unique calibration information (allowing full probe interchangeability).
- Extended cables available for underwater or remote measuring. Specify length when ordering.
- Probes are PosiTector SmartLink compatible – wirelessly connect PosiTector 6000 probes to your smart device.
Positector 6000 Probe Ordering Guide:
F – for ferrous metals (steel and cast iron)
N – for non-ferrous metals (aluminum, copper, titanium, etc.)
FN – for all metal substrates – Automatically recognizes the substrate and takes a measurement
Integral Probes
F, N, FN, FT Ideal for one-handed operation

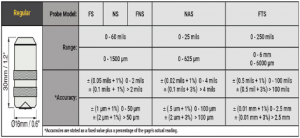

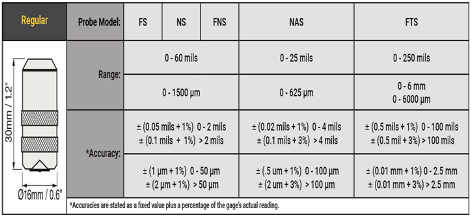

Cabled Regular Probes
FS, NS, FNS, NAS, FTS
These constant-pressure, stainless steel probes are hermetically sealed to be totally waterproof and also ideal for underwater use.

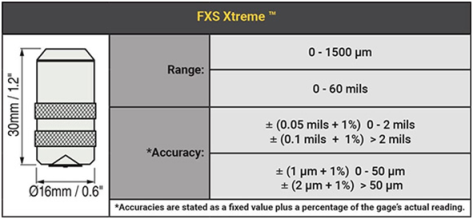

FXS
Designed for hot rugged applications. The FXS Xtreme™ probe features an improved zirconia-toughened alumina wear face and a new braided steel cable making it ideal for harsh conditions and continuous measurement on hot surfaces up to 250˚ C (500˚ F).
Enhanced measuring speed of 100+ readings per minute makes it ideal for measuring large, rough surfaces quickly.
Scan mode increases measurement rate to over 200 readings per minute (PosiTector Advanced only).
Compatible with PosiTector bodies with serial numbers greater than 700,000.

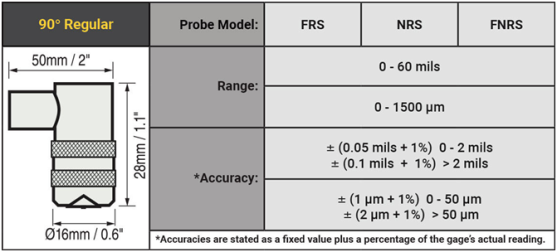

Cabled 90° Regular Probes
FRS, FNRS, FNRS Right angle probe for measuring of low headroom area.
These constant-pressure, stainless steel probes are hermetically sealed to be totally waterproof – ideal for underwater use.

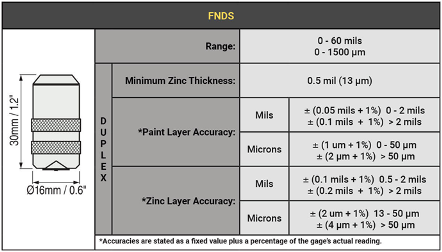

Cabled FNDS Probe for Duplex Coatings
The PosiTector 6000 FNDS probe measures the individual thicknesses of both the paint and the zinc layers in a duplex coating system with a single reading.
Duplex coating systems use a combination of two corrosion protection systems – typically paint or powder coating over galvanized steel (hot-dip, electro or zinc spray metallizing). The resultant corrosion protection is superior to either protection system used independently.
In Duplex mode, the PosiTector 6000 FNDS utilizes both magnetic (ferrous) and eddy current (non-ferrous) principles simultaneously to calculate and display the individual paint and zinc layer thicknesses. The magnetic principle is used to measure the combined paint/zinc thickness over the ferrous substrate, and the eddy current principle is used to measure the paint thickness over the non-ferrous zinc coating. The zinc thickness is calculated by subtracting the paint thickness from the combined paint/zinc thickness measurement.
When disabled, the gage will operate like a conventional combination ferrous/non-ferrous instrument (similar to PosiTector 6000 FNS probe). Ideal for measuring non-magnetic coatings over steel and non-conductive coatings over non-ferrous metal substrates.
Compatible with PosiTector Advanced (serial numbers 730,000+) and also PosiTector Standard gage bodies with a color display. A Simple gage update may be required.

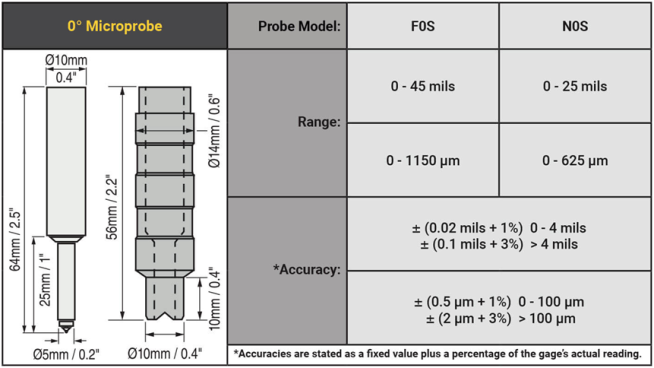

Cabled 0° Microprobes
F0S, N0S
With our smallest measuring tip and also best thin-film accuracy, this instrument is ideal for measuring on small parts, hard-to-reach areas, or close to edges.
The straight F0S and N0S Microprobes have a quick release adapter that makes them constant pressure probes for alignment on small, flat or curved parts. This adapter is held in place by a spring. If the sleeve is not required, simply pull it off the probe

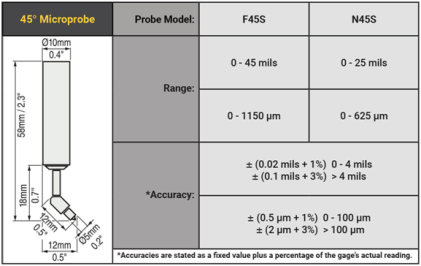

Cabled 45° Microprobes
F45S, N45S
With our smallest measuring tip and also best thin-film accuracy, this instrument is ideal for measuring on small parts, hard-to-reach areas, or close to edges.

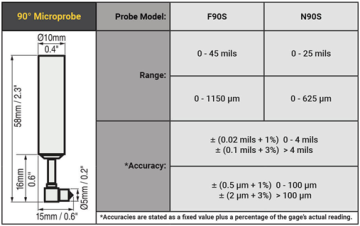

Cabled 90° Microprobes
F90S, N90S
Right angle probe for measuring within areas of low headroom. With our smallest measuring tip and best thin-film accuracy, this instrument is ideal for measuring on small parts, hard-to-reach areas, or close to edges.

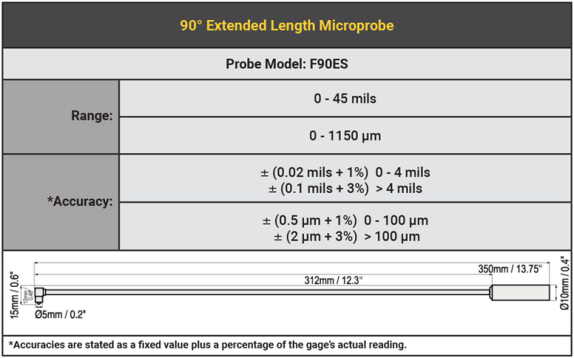

Cabled 90° Extended Length Microprobe
F90ES
Right angle extended length (350 mm / 13.75″) probe for measuring within areas of low headroom. With our smallest measuring tip, longest probe length and also best thin-film accuracy, this instrument is ideal for measuring on small parts, hard-to-reach areas, or close to edges.

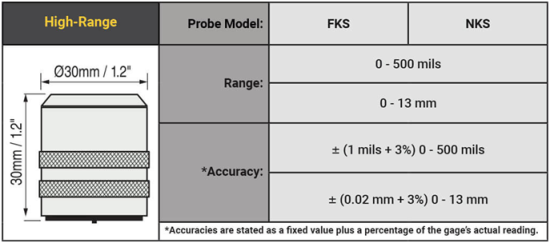

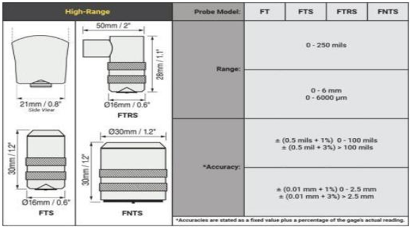

High-Range Probes
FT, FTS, FTRS, FNTS, FKS, NKS
Ideal for thick protective coatings such as epoxy, rubber, concrete liners, intumescent fireproofing and more.

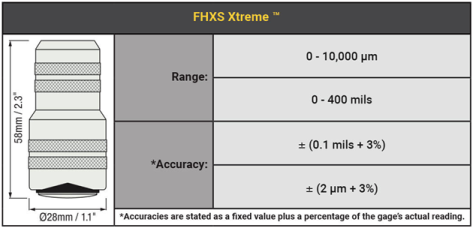

FHXS Xtreme™
Measure non-conductive coatings on steel substrates.
FHXS Xtreme™ probe with Alumina wear face and braided cable for hot or rough surfaces. Hot surfaces up to 250° C (500° F). Compatible with PosiTector bodies with serial numbers greater than 700,000 and also the new PosiTector SmartLink.

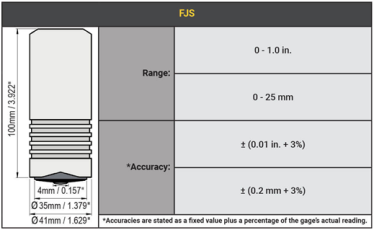

FJS
Ideal for measuring thick epoxies, rubbers, fireproofing and other thick protective coatings applied to steel. Lightweight, ergonomic design – 66% smaller than comparable probes.
Electro-magnetic probe is less susceptible to the effects of substrate roughness, curvature, material, and alloy.

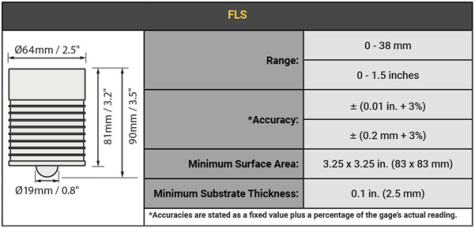

FLS
Measures intumescent paint and other thick protective coatings on steel. An available measures up to 38 mm (1.5 inches).
Come with braided stainless steel cable will kink-proof, wear and cut resistant, also includes hard shell case and 19 mm (750 mil) shim
Compatible with PosiTector bodies with serial numbers greater than 700,000 and the new PosiTector SmartLink.

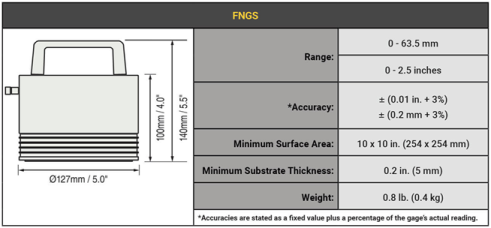

FNGS
For measures very thick coatings on ALL metals. Ideal for measuring ship hull coatings and thick intumescent paints.
Measures range up to 63.5 mm (2.5 inches) non-conductive coatings on both ferrous and non-ferrous metal substrates
Braided stainless steel cable – kink-proof, wear and cut resistant
Long-lasting, low wear probe face to facilitate scanning of large surfaces
Includes a handle for easy one-handed operation, a set of traceable coating thickness standards, and instruction card
Compatible with PosiTector bodies with serial numbers greater than 700,000 and the new PosiTector SmartLink.
