Description
What is surface thermometer ?
Surface thermometer is a device that measures temperature or a temperature gradient. (The degree of hotness or coldness of an object) surfaces. A thermometer has two important elements. The Firstly is a temperature sensor (e.g. the bulb of a mercury-in-glass thermometer or the pyrometric sensor in an infrared thermometer.) In which some change occurs with a change in temperature. The other is some means of converting this change into a numerical value (e.g. the visible scale that is marking on a mercury-in-glass thermometer or the digital readout on an infrared model). Thermometers are widely uses in technology and industry to monitor processes, in meteorology, in medicine, and in scientific research.
Our surface thermometer products as follow:

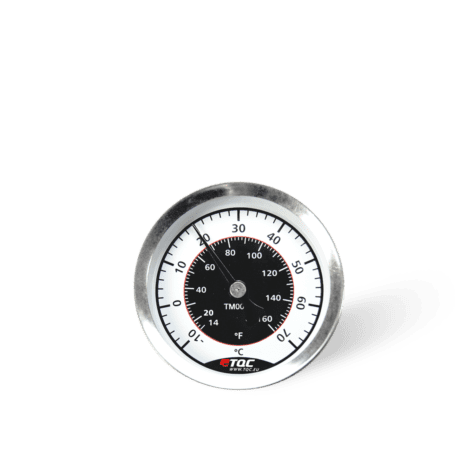

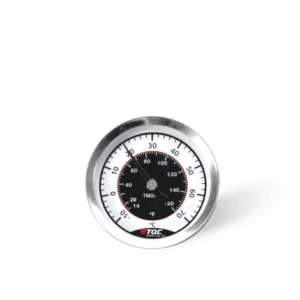

TQC Magnetic Surface Thermometer
TQC Magnetic Surface Thermometer specialize design for measuring the surface temperature of steel or other ferrous objects. What you need in firstly is only placing the thermometer on ferrous metal substrates with the strong magnet on the back, and thermometer will stick on steel surface.. Finally the surface temperature will read out in both °C and °F.
TQC Magnetic Surface Thermometer measures surface temperature in Celsius and also fahrenheits.
The Measuring Range is -10°C to + 70°C or equally +14°F to +60 °F, with diameter of the thermometer is 65 mm. Its also can be used in vacuum, no plastic parts on the outside of the thermometer.
TQC MT for surface temperature come with genuine leather pouch with belt-clip also.
APPLICATION AREAS
Coating industry, blasting works, galvanizing, laboratory, painting, shipbuilding industry, and also metal protection etc.
TQC MST SPECIFICATIONS
Material : SST case with silver (°C) and black (°F) readable scale.
Diameter : 65mm
Height : 25mm
Magnetic area : 35mm
User Manual
Just attach the thermometer on the ferrous surface.
Then the magnet creates a strong connection with the steel surface, and allowed the thermometer to acclimatize with the substrate for some time before it is read. After that read the temperature and also use it for registration or to assist in determining the dew point.
The dew point can be traced using the optional dew point calculator, and a relative humidity meter, please see options below.
TM0040 TQC Dewpoint Calculator determine dew point temperature based upon the measurements from sling psychrometer.
TM0081 Sling Psychrometer Bacharach type sling Psychrometer for indicating percent relative humidity on the basis of the wet bulb-dry bulb thermometer principle.
RV2000 ST-321 electronic thermo hygrometer is a simple hand-held digital thermo/hygrometer.
TQC Digital Surface Thermometer
Digital Surface Thermometer is used for measure surface temperature with fast responses in digital screen readers.
Fast Response Thermapen with Probe
A handy pocket size Thermapen digital thermometer with fold-able stainless steel probe. Available in two versions of the Thermapen, one with a ribbon surface probe, and another with a penetration probe. The surface probe is ideal measuring the temperature variety of flat surfaces, i.e. hotplates, pipework, bearings, etc. The versatile penetration probe with a pointed, general purpose tip is suitable for liquid and also semi-solid insertion.
When the probe is unfold the instrument automatically turns on, the unit will be turn off by folding the probe back.
The large digital display temperatures with a precise read-out over the range of -49.9 to 299.9 °C with a 0.1 °C resolution and an accuracy of ±0.4 °C with resolution 1°C.
Thermapen digital surface thermometer probe, conveniently folds back through 180 degrees.
The casing is washable and includes ‘Biomaster’ additive that reduces bacteria growth and also the ergonomic rubber seal minimises the risk of the ingress of water, dust or food. Its easier for carry, storage, and also simple to use.
Thermapen with surface probe.
Ideal for measuring the temperature of a variety of flat surfaces, i.e. hotplates, pipework, bearings, etc.
Why surface temperature measurement is critical?
ASTM D3276, “Standard Guide for Painting Inspectors (Metal Substrates),”1 states that the minimum surface temperature for coating application is usually 40ºF (5ºC). It may be as low as 0ºF (–18ºC) for “cold-curing” one or two-component systems or 50ºF (10ºC) for conventional two-component systems. Paint specifications may further state that painting should not be undertaken when the temperature is dropping and within 5ºF (3ºC) of the lower limit.
The maximum surface temperature for coating application is typically 125ºF (50ºC) unless clearly specified otherwise. A surface that is too hot may cause the coating solvents to evaporate so fast that application is difficult, blistering takes place, or a porous film results.

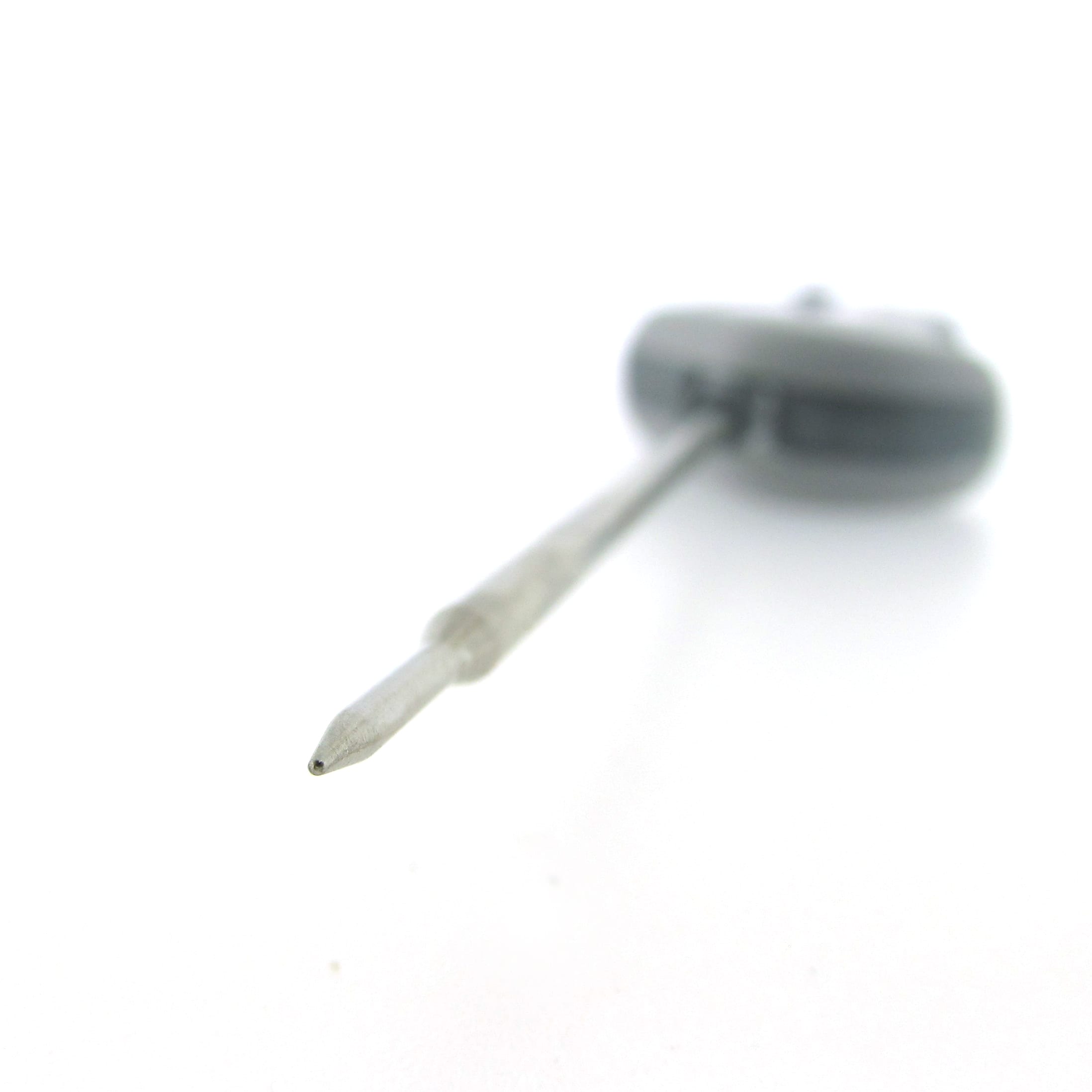

Thermapen with penetration probe
The strong, versatile penetration probe with a pointed, general purpose tip is suitable for liquid and semi-solid insertion.
For more product detail, quotation and other information, please contact us.
